External PIT tags

Hallprint is able to produce a range of external tags with PIT tag capability e.g. plastic tipped dart tags and T-Bar tags.  Like all of our tags these are custom made to order.  They are only available in FDX-B 134.2 Khz ISO 11784/11785 format (unique number only).  The double anchor T-Bar (type TDBA-PIT) and large plastic tipped dart tag versions (type PDAT-PIT - shown below) of these tags have both proven to be very popular with researchers studying freshwater salmon movement where tag visibility is advantageous and/or there are food safety concerns with implantable tags.  There have been many adaptations and applications of these including as removable tag modules and hook tags (shown below); please enquire if you have a potential application to discuss as there are many variations possible if PIT tag capability is important.

 PDAT-PIT tag used for salmon movement studies

PDAT-PIT tag used for salmon movement studies

 A variation on the HOOK-PIT tags used on juvenile tuna in tank trials.

A variation on the HOOK-PIT tags used on juvenile tuna in tank trials.

 The double anchor T-Bar PIT tags (DTBA-PIT) have been very popular and successful for salmon movement studies.

The double anchor T-Bar PIT tags (DTBA-PIT) have been very popular and successful for salmon movement studies.

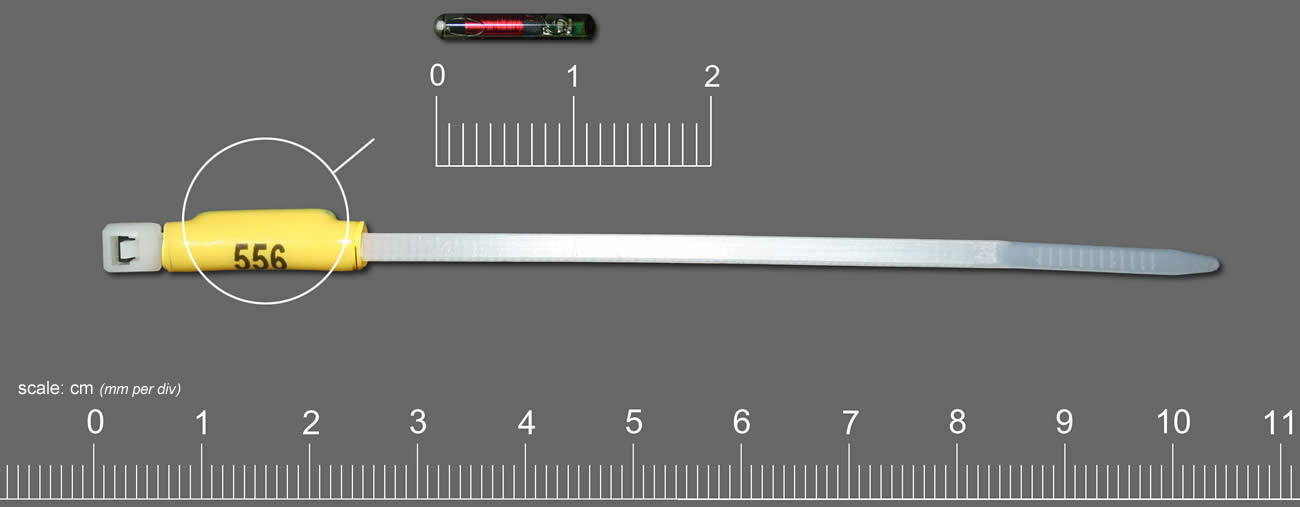

 Removable PIT modules have been used successfully on cable tie type tags for tank studies on crabs.

Removable PIT modules have been used successfully on cable tie type tags for tank studies on crabs.

PIT tag readers

Hallprint supplies and recommends the Datamars GES-3S portable readers for our FDX-B ISO 11784/11785 134.2 KHz external PIT tags. These can also be provided with an external water resistant wand. Contact us for further technical information and pricing.
